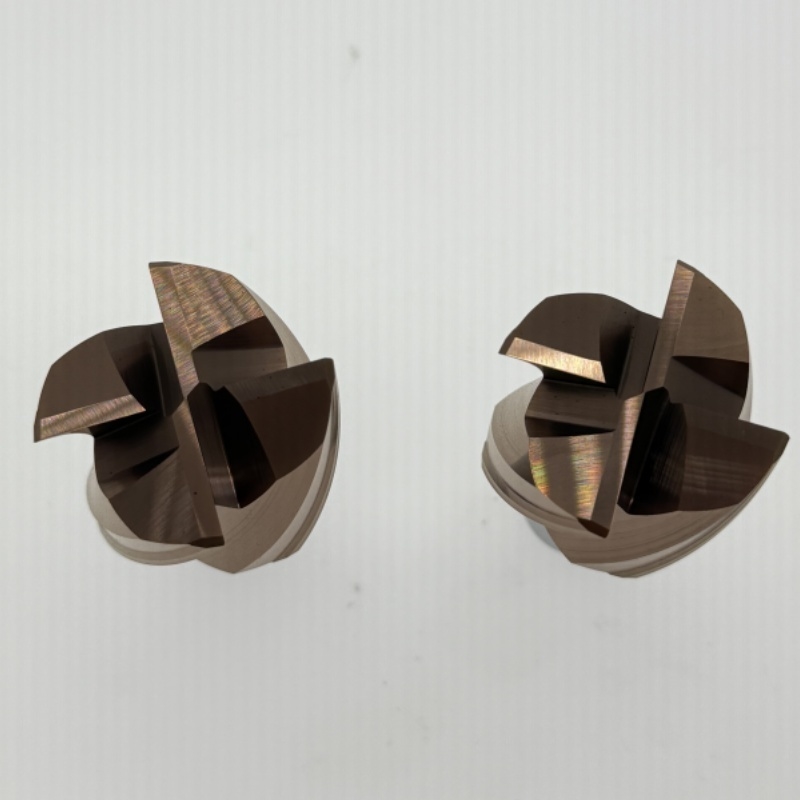

Custom End Mills For Milling Needs MDF And Particleboard Machining

Product Description:

Carbide End Mill for Wood
Carbide end mills for wood are crafted from a composite of carbide, often tungsten carbide, and a metal matrix binder. This composition endows them with remarkable hardness and heat resistance. These end mills are designed to be used in milling machines or CNC machining centers for woodworking applications. Their high hardness enables them to cut through various types of wood, such as hardwoods and softwoods, as well as wood-based materials like MDF (Medium-Density Fiberboard), plywood, and particleboard with precision. The heat resistance property allows for high-speed cutting, reducing processing time and increasing productivity. They come in different flute configurations, lengths, and diameters to suit various milling operations, including slotting, profiling, and contouring.

Single Flute End Mill
Single flute end mills are engineered for applications demanding rapid and high-volume material removal. Their most distinctive feature is the single cutting edge. This unique design creates ample space for chip evacuation. As a result, they can operate at faster feed rates and handle higher chip loads compared to conventional multi-flute tools. Single flute end mills are highly versatile and excel in roughing operations. They are well-suited for machining non-ferrous materials such as aluminum, brass, plastics, exotic composites, and soft metals. However, they are not recommended for use with steel. These long-life tools are typically made from micro-grain carbide, which contributes to their durability. They are available in a variety of cutting diameters, lengths, shank diameters, and geometries to meet the requirements of different specialty applications.

Compression End Mill for Wood
Compression end mills for wood are specialized tools designed to address specific challenges in wood and wood-derivative machining. They are typically used for materials like MDF, melamine chipboard, plywood, and other wood-based panels. These end mills have a unique design that combines both up-cut and down-cut features. During the cutting process, the top part of the tool exerts a downward force on the workpiece, while the bottom part exerts an upward force. This dual-action helps to minimize splintering and delamination, especially when working with materials that are prone to such issues, like panels with surface layers. Compression end mills are ideal for milling, grooving, and contouring operations. They can be made from solid carbide or have brazed hard metal plates, and some are coated to enhance their wear resistance, allowing for optimal productivity in high-feed machining on CNC nesting machines.

2-Flutes Spiral Flutes End Mill for Wood
Two-flutes spiral end mills for wood are popular choices for many woodworking tasks. The spiral flute design offers several advantages. As the tool rotates, the spiral flutes gradually engage with the wood, resulting in a smoother cutting action. This reduces vibration and noise during operation. These end mills can be further classified into up-cut and down-cut types. Up-cut 2-flutes spiral end mills are used for upward chip evacuation. They are excellent for achieving a clean finish on the bottom side of the workpiece. The shearing action of the up-cut design yields an accurate cut, and the augering effect helps to clear chips from the cut, reducing heat build-up, preventing tool breakage, and extending the tool's lifespan. They are perfect for creating grooves, slots, and dados in hardwood, softwood, MDF, plywood, and particleboard. Down-cut 2-flutes spiral end mills, on the other hand, are suitable for applications where a clean finish on the top surface of the workpiece is required, such as when working on the visible sides of furniture components.

Features:

As portrayed in the TM series of solid carbide end mills, the square end mills are equipped with 2 flutes. They have a blade diameter ranging from D1 to D25, an edge length of 3-40, a shank diameter of D4-D25, and an overall length of 50-200. These end mills are predominantly used for slotting, profiling, and contouring in woodworking applications, enabling the processing of various woods and wood-based materials.

Also featured in the TM series, the ball nose end mills come with 2 flutes, a blade diameter of D1-D25, a nose arc radius of R0.5-R12.5, an edge length of 2-30, a shank diameter of D4-D25, and an overall length of 50-200. They are specifically designed for curved surface machining in woodworking tasks, like creating decorative patterns on furniture pieces.

The corner radius end mills within the TM series are equipped with 2 flutes, a blade diameter of D1-D25, a nose arc radius of R0.2-R3, an edge length of 3-30, a shank diameter of D4-D12, and an overall length of 50-100. These end mills are commonly used for working on rounded corners and fillets in wood components to enhance the overall appearance and safety of the parts.

Compression end mills feature a distinctive design that combines both up-cut and down-cut elements. For instance, some are crafted from solid carbide or feature brazed hard metal plates, with a wear-resistant coating. They are ideal for milling, grooving, and contouring operations on materials like MDF, melamine chipboard, and plywood to reduce splintering and delamination.

Various types of mortising and tenoning end mills exist, including the Huxi, T-shaped, and set-tooth variations. They are primarily used for mortising and tenoning processes on solid wood or artificial boards, catering to the creation of diverse shapes for cabinets, door frames, floors, and more.

Single flute end mills are characterized by a single cutting edge, allowing efficient chip evacuation. For example, those made of micro-grain carbide are highly versatile, excel in roughing operations, and are suitable for machining non-ferrous materials like aluminum, brass, plastics, soft metals, and certain wood types.

Technical Parameters:

When selecting the appropriate carbide end mill for your woodworking project, it is essential to take into account various key factors such as the type of wood, material properties, and machining requirements. Below is a step-by-step guide to assist you in making an informed decision:

Solid wood (hardwoods/softwoods): For hardwoods like oak or maple, opt for end mills with sharp cutting edges and strong carbide grades. Spiral flutes work well for smooth cuts and reduced splintering.

Engineered wood (plywood, MDF, melamine): Compression end mills are ideal to prevent splintering and produce clean edges on these materials.

Softwoods (pine, cedar): Single-flute or 2-flute spiral end mills efficiently handle high chip loads for fast chip evacuation.

Single-flute: Suitable for high-speed material removal, especially in softwoods and roughing cuts.

2-flute spiral: Versatile for most tasks, offering smoother cuts and balanced chip removal.

Compression (multi-flute hybrid): Designed for layered materials to eliminate splinters.

Up-cut: Leaves a clean finish at the bottom of the workpiece.

Down-cut: Results in a clean top surface but may cause chip clogging.

Compression: Cleans both surfaces, essential for laminated materials.

Match shank size to your machine’s collet for secure gripping. Choose the right cutting length for the material thickness.

Opt for a fine-grain carbide and consider coatings like TiN or DLC to improve tool life and reduce friction.

Ensure the end mill is suitable for your machine's spindle speed and power.

For roughing, use single-flute or 2-flute up-cut tools. For fine finishes, consider compression end mills or down-cut 2-flute spirals.

Applications:

Shaping and Profiling: Used to create intricate edges, curves, and decorative profiles on furniture components like table tops, chair legs, cabinet doors, and drawer fronts. 2-flute spiral end mills excel here, delivering smooth finishes on solid wood (e.g., oak, walnut) and veneered panels.

Joinery Work: Ideal for cutting mortises, tenons, dados, and rabbets—critical for assembling frames, shelves, and cabinet carcasses. Compression end mills ensure clean, splinter-free joints in plywood or MDF, preventing weak points in the structure.

Cutting Slots and Grooves: Single-flute or 2-flute up-cut end mills efficiently cut slots for hinges, drawer slides, or cable management in cabinet sides and backs. Their strong chip evacuation prevents clogging in particleboard or melamine-coated panels.

Edge Banding Trimming: Carbide end mills with fine flutes (often 2-flute or compression designs) trim excess edge banding on cabinets, ensuring a seamless, flush finish without damaging the laminate or wood surface.

Framing and Structural Cuts: Used in CNC routers or milling machines to cut precise notches, angles, or channels in lumber for roof trusses, floor joists, or wall framing. Their hardness withstands the rigors of processing rough-sawn hardwoods or softwoods like pine.

Door and Window Manufacturing: Shaping door panels, window frames, and sashes. Compression end mills are particularly useful for processing glazed panels or composite door skins, where splinter-free edges are essential for aesthetics and weather resistance.

Carving and Engraving: Ball-nose or small-diameter carbide end mills create detailed patterns, letters, or relief carvings on wooden signs, decorative plaques, or art pieces. Their precision allows for intricate designs on both softwoods (e.g., cedar) and hardwoods (e.g., mahogany).

Toy Making: Used to cut smooth, burr-free shapes for wooden toys. 2-flute spiral end mills ensure safe, rounded edges, while single-flute designs speed up bulk material removal for larger toy components.

MDF and Particleboard Machining: Carbide end mills resist wear from the abrasive binders in these materials. Compression end mills prevent surface tearing when cutting MDF for shelving or furniture, while single-flute tools handle high-volume roughing in production lines.

Plywood and Laminates: Critical for cutting plywood sheets into cabinet parts or flooring. The up-cut/down-cut action of compression end mills eliminates delamination and splintering on both faces, preserving the integrity of veneers or laminates.

Mass Production Lines: In automated CNC systems, carbide end mills (often with coatings for extended life) perform repetitive cuts on wood components for furniture, packaging, or pallets. Their high-speed capabilities and durability reduce downtime for tool changes.

Custom Molding: Producing trim, baseboards, or crown molding with complex profiles. Spiral-flute designs ensure consistent, smooth cuts along the length of the material, even in dense hardwoods like maple.

Customization:

Product Customization Services for the Custom End Mills:

Brand Name: ODM/OEM

Model Number: CUSTOM

Place of Origin: Changzhou, Jiangsu, China

Certification: ISO9001

Minimum Order Quantity: 5PCS

Price: To be negotiated

Packaging Details: Single Plastic Tube

Delivery Time: 7-15 Days

Payment Terms: T/T, Paypal, Alipay

Supply Ability: 100000000000PCS

CNC Machine: Michael, Deckel, ANCA, TTB, TOP

Shank Diameter: Customized

Workpiece: Carbon Steels, Alloy Steels

Packaging: One Plastic Pipe Pack One Piece, 10 Pieces Per Group

Customized support: OEM, ODM

Support and Services:

Our Product Technical Support team for Custom End Mills is dedicated to assisting you with any questions or issues you may have regarding the performance and specifications of our end mills. Whether you need help optimizing tool paths, selecting the right coating, or troubleshooting any machining challenges, our experts are here to provide you with the guidance you need.

In addition to technical support, we also offer a range of services to enhance your experience with our Custom End Mills. These services include custom tool design consultations, regrinding and recoating options, as well as training and educational resources to help you maximize the performance of our products in your specific applications.

Packing and Shipping:

Product Packaging:

Our Custom End Mills are carefully packaged to ensure their protection during shipping. Each end mill is placed in a secure box with sufficient padding to prevent any damage during transit. Additionally, the packaging is designed to keep the end mills in place and prevent any movement that may cause potential harm.

Shipping:

We offer various shipping options for our Custom End Mills to accommodate our customers' needs. Standard shipping typically takes 3-5 business days, while expedited shipping options are available for those who require their end mills sooner. All orders are processed promptly to ensure timely delivery to our valued customers.

FAQ:

Q: What is the brand name of the Custom End Mills?

A: The brand name of the Custom End Mills is ODM/OEM.

Q: What is the model number of the Custom End Mills?

A: The model number of the Custom End Mills is CUSTOM.

Q: Where is the Custom End Mills manufactured?

A: The Custom End Mills are manufactured in Changzhou, Jiangsu, China.

Q: What certification does the Custom End Mills have?

A: The Custom End Mills are certified with ISO9001.

Q: What is the minimum order quantity for the Custom End Mills?

A: The minimum order quantity for the Custom End Mills is 5PCS.
